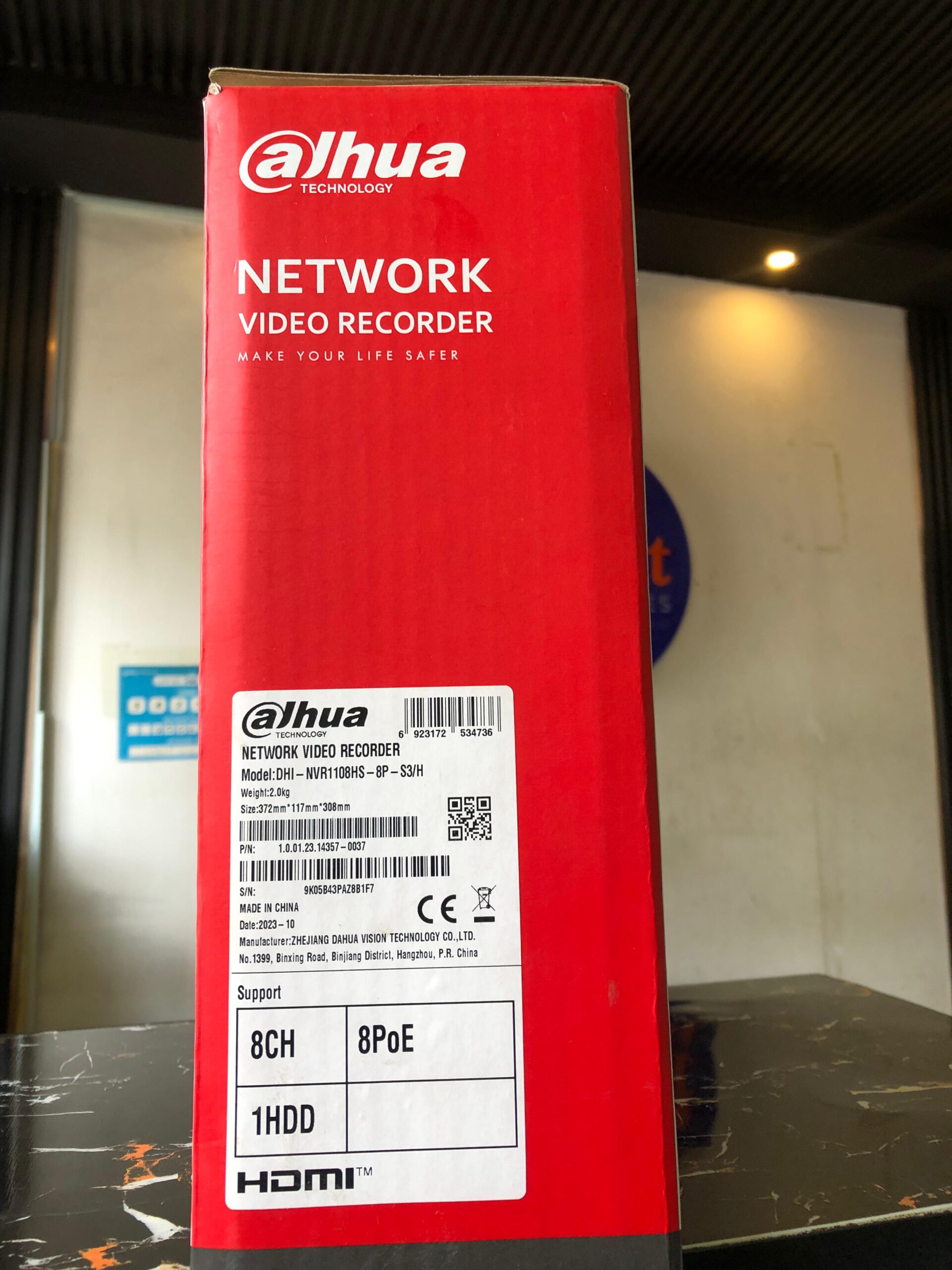

Dahua 8CH 8PoE 1HDD DHI-NVR1108HS-SP-S3/H

Dahua 8CH 8PoE 1HDD DHI-NVR1108HS-SP-S3/H

Key Features

  • ✅ 8-Channel Compact 1U NVR with 1 HDD slot

  • ✅ 8 PoE ports – power and connect cameras directly

  • ✅ New 4.0 user interface (easy to use)

  • ✅ Smart H.265+ / Smart H.264+ compression

  • ✅ P2P remote viewing on mobile (iOS & Android)

  • ✅ Supports ONVIF & RTSP third-party cameras

  • ✅ HDMI & VGA simultaneous video output (1080p max)

  • ✅ Remote configuration and batch IPC management

  • ✅ Reliable embedded Linux operating system

KSh 16,000.00 KSh 18,000.00

The Dahua 8CH 8PoE 1HDD DHI-NVR1108HS-SP-S3/H is a compact, high-performance 8-channel network video recorder designed for small to medium security installations such as homes, offices, shops, schools, and warehouses. Built on a reliable embedded Linux system, it supports Smart H.265+/H.264+ compression to deliver crystal-clear video while saving storage and bandwidth. With built-in PoE ports, you can power and connect up to 8 IP cameras directly, making installation fast and cost-effective. The new 4.0 user interface, ONVIF/RTSP compatibility, and P2P mobile access allow easy setup, remote monitoring, and seamless integration with third-party cameras. This NVR offers stable performance, smooth 1080p decoding, HDMI/VGA output, and flexible recording modes for dependable, everyday surveillance.

Category:

Technical Specifications

System

  • Processor: Industrial-grade embedded processor

  • Operating System: Embedded Linux

  • Interface: Web & Local GUI

Video & Recording

  • Access Channels: 8

  • Network Bandwidth:

    • Access: 80 Mbps

    • Storage: 80 Mbps

    • Forwarding: 60 Mbps

  • Supported Resolutions: 8MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, CIF

  • Decoding Capability:

    • 1-ch@8MP (30 fps)

    • 1-ch@5MP (30 fps)

    • 2-ch@4MP (30 fps)

    • 2-ch@3MP (30 fps)

    • 4-ch@1080p (30 fps)

  • Video Output: 1× HDMI + 1× VGA (Simultaneous, 1080p max)

  • Multi-screen Display: 1 / 4 / 8 / 9

Compression & Audio

  • Video Compression: Smart H.265+, H.265, Smart H.264+, H.264

  • Audio Compression: PCM, G711A, G711U, G726

Network & Mobile Access

  • Protocols: HTTP, HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, DHCP, DNS, P2P

  • Mobile Apps: iDMSS (iOS), gDMSS (Android)

  • Browser Support: Chrome, IE9+, Firefox

  • Interoperability: ONVIF (Profile T/S/G), CGI, SDK

Playback & Recording Modes

  • Playback: Up to 8 channels

  • Record Modes Priority: Manual > Alarm > Motion Detection > Scheduled

  • Playback Functions: Play, pause, fast forward/backward, frame play, zoom, backup, audio on/off

Storage & Backup

  • HDD: 1× SATA 2.0, up to 8TB

  • Backup: USB devices supported

Alarms

  • General: Motion detection, video loss, privacy masking, IPC alarm

  • Anomaly: Network issues, HDD error/full, IP/MAC conflict, login lock

  • Linkage: Recording, snapshot, preset, tour, log

Ports & Interfaces

  • PoE: 8 ports

  • USB: 2× USB 2.0 (Front & Rear)

  • Network: 1× RJ-45 (10/100 Mbps)

  • HDMI: 1

  • VGA: 1

  • Audio: RCA In / Out

Power & Physical

  • Power Supply: 12V DC, 1.5A

  • Power Consumption: ≤ 10W (without HDD)

  • Net Weight: 0.81 kg

  • Dimensions: 260 × 225 × 47.6 mm

  • Installation: Desktop

  • Operating Temp: -10°C to +45°C

  • Certifications: CE, FCC
